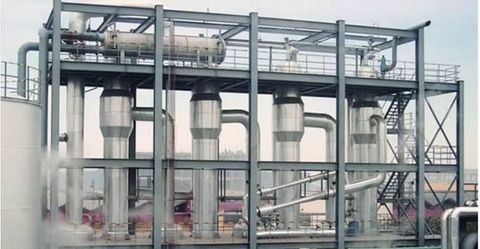

A multiple effect evaporator is an industrial evaporation system designed to remove water or another volatile liquid from a solution while making repeated use of thermal energy.
Instead of relying on a single evaporation stage, the equipment connects several evaporation chambers, known as effects, so vapor generated in one stage can provide heat for the next. This arrangement is widely used where concentration, water recovery, or liquid-volume reduction is required.
A multiple effect evaporator system can appear in food processing, dairy production, pharmaceutical processing, chemical plants, sugar processing, and industrial wastewater treatment. Depending on operating conditions, a multiple effect evaporator manufacturer or multiple effect evaporator supplier may configure falling film, rising film, forced circulation, or vacuum-based equipment. Understanding these arrangements helps explain why evaporation technology varies considerably between industrial applications.
Context
How Multiple Effect Evaporation Works
Evaporation separates a volatile component, commonly water, by applying heat. In a basic evaporator, heat causes part of the liquid to vaporize, leaving behind a more concentrated solution.
A multi effect evaporator extends this principle across several stages. Vapor produced in the first effect becomes a heating medium for another effect operating at a lower pressure. The process can continue through additional effects.
Lower pressure allows liquid to boil at a lower temperature. This pressure difference is important because vapor leaving one effect would otherwise have insufficient temperature difference to drive evaporation efficiently in the following effect.
A typical multiple effect evaporation plant contains:
- Heat exchangers for transferring thermal energy
- Vapor and liquid separators
- Condensers for handling vapor
- Pumps for moving process liquids
- Vacuum equipment where reduced pressure is required
- Instruments for temperature, pressure, level, and flow measurement
- An evaporator automation system for process monitoring and control
An industrial evaporation system may have two, three, four, or more effects. Adding effects can improve steam economy, although greater system complexity and available temperature differences place practical limits on the number used.
Common Evaporator Configurations
Different liquid properties require different evaporation system design approaches.
A falling film evaporator distributes liquid near the upper section of vertical tubes. The liquid forms a thin film as it moves downward while evaporation occurs. A falling film evaporator manufacturer may use this arrangement for liquids that can be affected by extended exposure to elevated temperatures.
A rising film evaporator uses vapor formation inside heated tubes to help move liquid upward. A rising film evaporator manufacturer must consider boiling behavior, viscosity, and circulation characteristics when developing the configuration.
A forced circulation evaporator uses a pump to maintain substantial liquid movement through a heat exchanger. A forced circulation evaporator manufacturer may apply this arrangement when scaling, crystallization, or high liquid viscosity makes natural circulation difficult.
A vacuum evaporator system lowers operating pressure so evaporation can occur at reduced temperatures. Vacuum evaporation equipment is particularly relevant when the material being concentrated is sensitive to elevated temperatures.
| Evaporator type | Basic liquid movement | Common consideration |
|---|---|---|
| Falling film evaporator | Thin film moves downward | Shorter heat exposure |
| Rising film evaporator | Vapor assists upward movement | Suitable boiling behavior |
| Forced circulation evaporator | Pump drives circulation | Scaling and viscous liquids |
| Vacuum evaporator system | Operates under reduced pressure | Lower boiling temperature |
| Multiple effect evaporator | Vapor heat reused across stages | Improved steam utilization |
Importance
Energy and Resource Management
Industrial evaporation can require substantial thermal energy because converting liquid into vapor requires heat. An energy efficient evaporator attempts to reduce fresh steam demand by recovering and reusing thermal energy within the process.
A multi effect evaporator is important because vapor from one stage is not immediately discarded. Instead, its remaining thermal energy can contribute to evaporation in another stage. An energy efficient evaporation system can therefore improve overall steam economy compared with a comparable single-effect arrangement.
The actual performance depends on feed temperature, concentration, number of effects, heat-transfer area, pressure profile, fouling, and operating stability.
Concentration in Food and Dairy Processing
A food processing evaporator removes part of the water contained in liquid food materials. A food industry evaporation system may be used for concentration before subsequent processing or storage stages.
A dairy evaporation system performs a similar function with dairy liquids. A milk evaporator system can concentrate milk streams by removing water under carefully controlled temperatures.
A juice concentration evaporator reduces the water content of fruit juice, while a sugar industry evaporator can concentrate sugar-containing solutions before later processing stages. Temperature control is particularly important when product properties can change during prolonged heating.
Wastewater and Water Recovery
Industrial wastewater can contain dissolved substances that cannot be removed through simple filtration. A wastewater evaporator system separates water through evaporation while concentrating less volatile materials.
An industrial wastewater evaporator can also form part of a larger water-management arrangement. A zero liquid discharge evaporator or ZLD evaporation system is generally integrated with other treatment processes intended to reduce or eliminate routine liquid discharge.
Evaporation alone does not automatically create a complete ZLD process. Pretreatment, concentration, crystallization, solids handling, and water-quality requirements can all influence the final arrangement.
Pharmaceutical and Process Applications
A pharmaceutical evaporator system may concentrate process liquids under carefully controlled operating conditions. Pharmaceutical evaporation equipment can require precise temperature, pressure, material compatibility, cleaning, and process-control arrangements.
A high capacity evaporator used in continuous industrial processing may need additional instrumentation and automated evaporation system controls. These systems can help maintain operating parameters and detect changes in pressure, temperature, flow, or liquid level.
Recent Updates
Greater Attention to Energy Efficiency
From 2024 through 2026, industrial evaporation development has continued to focus on reducing energy consumption and improving heat recovery. Multiple-effect arrangements remain relevant because they reuse vapor energy rather than depending entirely on fresh heating steam at every stage.
Industrial facilities are also examining combinations of multiple-effect evaporation, vapor recompression, heat recovery, and improved process control. The appropriate arrangement depends on plant conditions and the properties of the material being processed.
Automation and Process Monitoring
Modern evaporator automation system technology increasingly uses digital sensors, programmable controllers, data logging, and centralized monitoring. Operators can track temperature, vacuum level, pressure, flow, concentration, and equipment conditions from integrated control interfaces.
Automated evaporation system functions can also maintain operating sequences and respond to defined process limits. Data trends help engineering teams identify fouling, changing heat-transfer performance, and unusual operating conditions.
Application-Specific Engineering
Another current trend is increased attention to custom evaporator system engineering rather than treating every application in the same way. Feed composition, solids content, viscosity, boiling-point elevation, scaling tendency, and required final concentration can significantly affect equipment selection.
Custom evaporation equipment may therefore combine several technologies. Evaporator system integration can connect evaporation equipment with pretreatment, condensate recovery, crystallization, drying, or solids-handling equipment.
Laws or Policies
Environmental Requirements
Industrial evaporation equipment is affected by environmental rules governing wastewater discharge, air emissions, waste handling, and water use. Exact requirements depend on the country, region, industrial activity, and materials being processed.
A wastewater evaporator system or zero liquid discharge evaporator must therefore be considered within the broader environmental framework applying to the facility. Concentrated residues produced during evaporation may remain subject to waste-management requirements even when water has been recovered.
Equipment and Workplace Requirements
An evaporation plant includes pressurized equipment, heated surfaces, pumps, piping, electrical systems, and sometimes vacuum vessels. Applicable engineering codes can establish requirements for pressure-containing components, fabrication, inspection, electrical installations, and workplace safety.
A turnkey evaporation plant or turnkey evaporator system can involve several engineering disciplines. Evaporator engineering normally considers mechanical integrity, instrumentation, process control, pressure protection, accessibility, and emergency operating procedures.
Food and pharmaceutical installations may also have additional hygiene, material, cleaning, and process-control requirements. Regulations differ between jurisdictions, so applicable local rules need to be identified for each installation.
Tools and Resources
Process Calculation Tools
Evaporator system design commonly uses mass and energy balance calculations. These calculations estimate how much water must be evaporated, expected concentration changes, steam requirements, heat-transfer duties, and vapor generation.
Engineering teams may use spreadsheet models or process simulation platforms when developing an evaporation plant design. Typical calculation inputs include:
- Feed flow rate
- Initial solids concentration
- Required final concentration
- Feed temperature
- Operating pressures
- Boiling-point elevation
- Heat-transfer characteristics
- Number of evaporation effects
Process Simulation and Instrumentation
Process simulation platforms can model an industrial evaporator system before physical equipment is finalized. These models can examine temperature profiles, energy balances, vapor flows, and changes in operating conditions.
Instrumentation is equally important after installation. Temperature transmitters, pressure sensors, vacuum instruments, flow meters, level sensors, and concentration measurement devices provide information required by an automated evaporation system.
Engineering Documentation
An evaporation system manufacturer or evaporator plant manufacturer normally works with technical documents that describe process requirements and equipment arrangements. Common resources include process flow diagrams, piping and instrumentation diagrams, equipment data sheets, control descriptions, operating procedures, and maintenance schedules.
These documents are also useful during evaporator system integration because they define how individual pieces of evaporation plant equipment interact.
FAQs
What is a multiple effect evaporator?
A multiple effect evaporator is an evaporation arrangement containing two or more stages operating at progressively lower pressures. Vapor generated in one effect provides thermal energy for another effect, allowing heat to be reused within the process.
What is the difference between a multiple effect evaporator and a single-effect system?
A single-effect system normally uses its heating medium for one primary evaporation stage. A multiple effect evaporator system reuses vapor energy through additional effects, which can reduce fresh steam requirements for a given evaporation duty.
How does a multiple effect evaporator manufacturer determine the number of effects?
The number depends on factors such as available steam conditions, feed properties, required concentration, temperature limits, boiling-point elevation, heat-transfer performance, and plant capacity. Additional effects can improve steam economy, but they also increase equipment complexity and reduce the available temperature difference per effect.
When is a forced circulation evaporator used?
A forced circulation evaporator uses a pump to maintain liquid movement through the heating circuit. It is commonly considered for viscous liquids, crystallizing solutions, or streams with significant scaling potential where strong circulation can improve process stability.
What should be considered in multiple effect evaporation plant design?
Multiple effect evaporation plant design considers feed composition, evaporation capacity, final concentration, operating temperature, pressure, heat-transfer area, fouling tendency, materials of construction, energy use, instrumentation, cleaning requirements, and integration with surrounding process equipment.
Conclusion
A multiple effect evaporator uses several evaporation stages to concentrate liquids while reusing vapor heat within the process. Falling film, rising film, forced circulation, and vacuum arrangements address different liquid characteristics and operating requirements. Modern evaporation system engineering increasingly combines energy management, automation, process monitoring, and application-specific equipment design. Environmental requirements, equipment codes, feed properties, and overall plant integration are important factors in understanding how an evaporation system functions.
